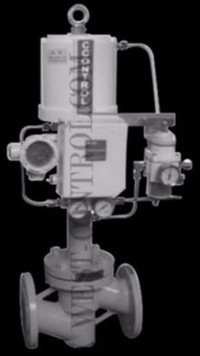

CV1100TL Teflon Lined Control Valve

CV1100TL Teflon Lined Control Valve

Valve Type:                                                 Teflon-lined globe control valve


Valve Nominal Size:                                  DN20 through DN200; 0.75 inch through 8 inch


Pressure Rating:                                         PN10, 16; ANSI Class 150


Body Style:                                                  Single seat globe


Flow Characteristic:                                  Linear, Equal percentage EQ%


Rangeability:                                              30:1


Temperature Range:                                 From -20°C to 150 °C


Seat Leakage:                                              ANSI IV, V or VI


Actuator:                                                      Pneumatic cylinder actuator; Pneumatic diaphragm actuator;

                                          Electric actuator; Hand-wheel manual for option

Description & Features


CV1100TL Teflon lined control valve is the anti-corrosive type globe valve. Body wetted parts and trim use the high pressure injection which are lined F46, and gland parts are completely sealed by bellows seal bonnet made of pure Teflon. They’re applicable controlling high corrosive and poisonous fluid. It’s widely used in automatic control of the strong acids, alkali and other corrosive media and toxic, volatile gases and liquid media in chemical, petroleum, metallurgy, medicine, electricity and other industries.


Great corrosion resistance.


Long life, high regulating accuracy.


Reliable safety, and easy maintenance.
