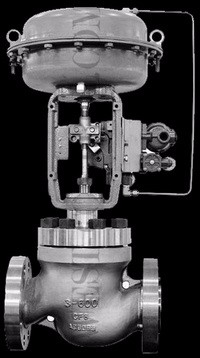

CV2200 Pressure Balanced Control Valve

CV2200 Pressure Balanced Control Valve

Valve Type:                                                 Pressure balanced cage guided control valve


Valve Nominal Size:                                  DN25 through DN600; 1 inch through 24 inch


Pressure Rating:                                         PN16, 40, 63, 100, 160, 250, 400; ANSI Class 150, 300, 600, 900, 1500, 2500


Body Style:                                                  Cage Guided globe or angle, Jacket


Trim Type:                                                    Balanced plug


Flow Direction:                                           Flow over the plug; Flow under the plug


Flow Characteristic:                                   Equal percentage EQ%; Linear


Rangeability:                                               50:1 to 20:1


Temperature Range:                                From -196°C to 538 °C


Seat Leakage:                                             ANSI IV or V


Actuator:                                                     Pneumatic diaphragm actuator; Pneumatic cylinder actuator;

                                                                        Electric actuator; Hand-wheel manual for option

Description & Features

CV2200 Linear Cage
CV2200 Equal Percentage Cage


CV2200 control valve having an S-shape flow passage that features low pressure loss and a stabilizer that regulates turbulent flow around the cage, allows a large flow capacity, rangeability and high accuracy flow characteristics, noise reduction, applicable in various clean service and high differential pressure fluids.


The balanced plug design is utilised to greatly reduce fluid forces acting on the valve plug allowing economical actuation and stable control, so it use with smaller more economical actuators. The cylindrical plug head is drilled with balancing ports to admit pressure above the plug head. The annular leakage flow between the valve plug and cage is minimised by a sealing ring retained within a plug groove.
